Equalising Triangles
Description

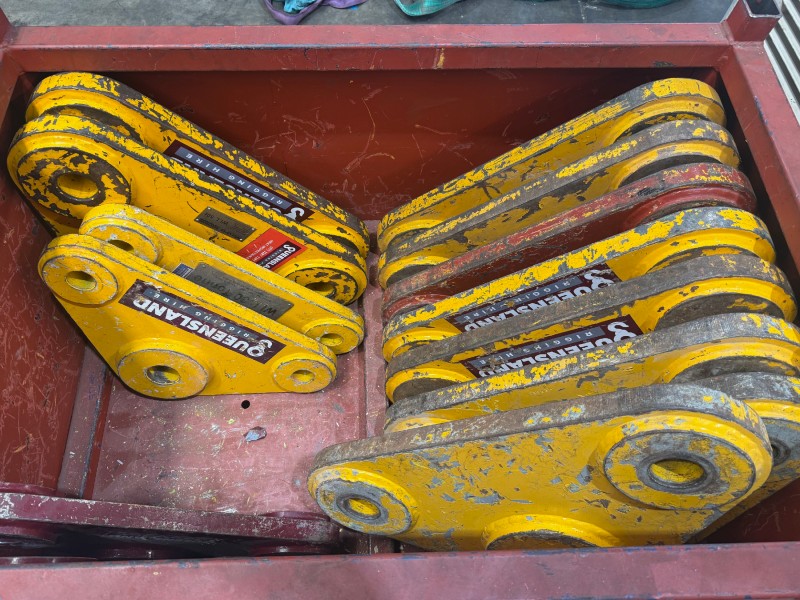

Queensland Rigging Hire have a large range of Equalising Triangles in all sizes from 5t through to 200t on the shelf and available for short and long term hire.
Equalising triangles are designed to equally distribute weight from a single lifting point to a pair of lifting points. One of the benefits of equalising a load is that the WLL of the rigging can be increased in a 3 or 4 point lift with proper equalisation (please refer to a competent person to verify this)
Load equalisation is often under looked and is a fantastic way to get the most out of your rigging.
| CAPACITY: | TARE WEIGHT: | LIFTING LUGS (TOP) SUIT: | LOAD LUGS (LOWER) SUIT: | DOWNLOAD |
| 5 Ton | 10kg (excluding shackles or associated rigging gear) | 6.5t Grade ’S’ safety bow shackle | 3.2t Grade ’S’ safety bow shackle | Download |
| 10 Ton | 15kg (excluding shackles or associated rigging gear) | 12t Grade ’S’ safety bow shackle | 6.5t Grade ’S’ safety bow shackle | Download |
| 20 Ton | 25kg (excluding shackles or associated rigging gear) | 25t Grade ’S’ safety bow shackle | 12t Grade ’S’ safety bow shackle | Download |
| 25 Ton | 25kg (excluding shackles or associated rigging gear) | 25t Grade "S" safety bow shackle | 13.5t Grade "S" safety bow shackle | Download |
| 30 Ton | 30kg (excluding shackles or associated rigging gear) | 35t Grade ’S’ safety bow shackle | 17t Grade ’S’ safety bow shackle | Download |
| 35 Ton | 50kg (excluding shackles or associated rigging) | 35t Grade "S" safety bow shackle | 25t Grade "S" safety bow shackle | Download |
| 50 Ton | 90kg (excluding shackles or associated rigging) | 55t Grade ’S’ safety bow shackle | 35t Grade ’S’ safety bow shackle | Download |
| 85 Ton | 130kg (excluding shackles or associated rigging gear) | 85t Grade ’S’ safety bow shackle | 55t Grade ’S’ safety bow shackle | Download |
| 120 Ton | 190kg (excluding shackles or associated rigging gear) | 120t Grade ’S’ safety bow shackles | 85t Grade ’S’ safety bow shackle | Download |
| 150 Ton | 300kg (excluding shackles or associated rigging gear) | 150t Grade ’S’ bow shackle or 150t sling shackle | 85t Grade ’S’ safety bow shackle or 75t sling shackle | Download |
| 200 Ton | 400kg (excluding shackles or associated rigging) | 200t Grade "S" Safety Pin Bow Shackle OR 200t Sling Shackle | 120t Grade "S" Safety Pin Bow Shackle OR 125t Sling Shackle | Download |
Note: The information on this page is indicative only. Please consult our team before undertaking any operations with this device.
